将眼底照片特定于患者的映射到三维眼成像 - 第1部分：光线追迹

将眼底照片特定于患者的映射到三维眼成像 - 第1部分：光线追迹#

此示例包含对论文的射线疗法模拟[将眼底照片特定于三维的眼部成像]（https://doi.org/10.1002/mp.17576）。

引用#

在引用ZOSPy以外，还请在使用此示例或此示例中提供的数据时引用以下论文：

Haasjes, C., Vu, T. H. K., & Beenakker, J.-W. M. (2024). Patient-specific mapping of fundus photographs to three-dimensional ocular imaging. Medical Physics. https://doi.org/10.1002/mp.17576

保修和责任#

提供的代码和数据仅用于研究目的。没有保证，也不能从中获得权利，正如该存储库的一般许可中所述。

导入依赖项#

[1]:

import json

import matplotlib.pyplot as plt
import numpy as np
import pandas as pd
import seaborn as sns
from helpers import InputOutputAngles, get_nodal_points, get_retina_locations

import zospy as zp

[2]:

import warnings

warnings.filterwarnings("ignore", message="Header and row length mismatch")

初始化OpticStudio#

通过ZOSPy与OpticStudio建立连接。

在此示例中，我们在“扩展”模式下与OpticStudio连接。对于更广泛的模拟，我们建议使用“独立”来大大提高计算性能。

[3]:

zos = zp.ZOS()

[4]:

oss = zos.connect("extension")

定义眼睛模型#

使用的眼模模型基于健康受试者的临床测量。

[5]:

# navarro_geometry = {
#     "axial_length": 23.9203,  # mm
#     "cornea_thickness": 0.5,  # mm
#     "anterior_chamber_depth": 3.05,  # mm
#     "lens_thickness": 4.0,  # mm
#     "cornea_front_curvature": 7.72,  # mm
#     "cornea_front_asphericity": -0.26,
#     "cornea_back_curvature": 6.5,  # mm
#     "cornea_back_asphericity": 0,
#     "iris_radius": 0.5,  # mm
#     "lens_front_curvature": 10.2,  # mm
#     "lens_front_asphericity": -3.1316,
#     "lens_back_curvature": -6.0,  # mm
#     "lens_back_asphericity": -1,
#     "retina_curvature": -12.0,  # mm
#     "retina_asphericity": 0.0,
# }

geometry = {
    "axial_length": 24.305,  # mm
    "cornea_thickness": 0.5615,  # mm
    "anterior_chamber_depth": 3.345,  # mm
    "lens_thickness": 3.17,  # mm
    "cornea_front_curvature": 7.6967,  # mm
    "cornea_front_asphericity": -0.2304,
    "cornea_back_curvature": 6.2343,  # mm
    "cornea_back_asphericity": -0.1444,
    "iris_radius": 0.5,  # mm
    "lens_front_curvature": 10.2,  # mm
    "lens_front_asphericity": -3.1316,
    "lens_back_curvature": -5.4537,  # mm
    "lens_back_asphericity": -4.1655,
    "retina_curvature": -11.3357,  # mm
    "retina_asphericity": -0.0631,
}

geometry["vitreous_thickness"] = geometry["axial_length"] - (
    geometry["cornea_thickness"] + geometry["anterior_chamber_depth"] + geometry["lens_thickness"]
)
geometry["retina_radius_z"] = abs(geometry["retina_curvature"] / (geometry["retina_asphericity"] + 1))
geometry["retina_radius_y"] = abs(geometry["retina_curvature"] / np.sqrt(geometry["retina_asphericity"] + 1))

# For the Lamberth projection, a spherical retina needs to be used
# mean_retina_radius = np.mean([geometry["retina_radius_z"], geometry["retina_radius_y"]])
# geometry["retina_curvature"] = geometry["retina_radius_y"] = geometry[
#     "retina_radius_z"
# ] = -mean_retina_radius
# geometry["retina_asphericity"] = 0.0

refractive_indices = {  # at 543 nm (green light)
    "cornea": 1.3777,
    "aqueous": 1.3391,
    "lens": 1.4222,
    "vitreous": 1.3377,
}

with open("data/geometry.json", "w") as f:
    json.dump(geometry, f)

在Opticstudio中初始化光学系统#

对于光线追迹，使用了543 nm的波长（在可见光谱的中心），输入的视场角度从0°到85°，步距为5°。

光线瞄准（OpticStudio的特征，它移动外围输入光束，使其穿过实际瞳孔的中心）被关闭，就像在眼科成像中，入瞳在图像的中心。

[6]:

APERTURE = zp.constants.SystemData.ZemaxApertureType.FloatByStopSize
WAVELENGTH = 0.543  # nm
FIELDS = np.arange(0, 90, 5)  # degrees with respect to the optical axis

[7]:

oss.new()
oss.make_sequential()

oss.SystemData.Aperture.ApertureType = zp.constants.SystemData.ZemaxApertureType.FloatByStopSize
oss.SystemData.Wavelengths.GetWavelength(1).Wavelength = WAVELENGTH
oss.SystemData.RayAiming.RayAiming = zp.constants.SystemData.RayAimingMethod.Off

# Add fields
for i, f in enumerate(np.array(FIELDS).astype(float)):
    if i == 0:
        oss.SystemData.Fields.GetField(1).X = 0
        oss.SystemData.Fields.GetField(1).Y = f
        oss.SystemData.Fields.GetField(1).Weight = 1
    else:
        oss.SystemData.Fields.AddField(X=0, Y=f, Weight=1)

创建眼睛模型#

对于每个表面，设置了曲率、非球面度、厚度和折射率。

[8]:

# Dummy surface, needed for calculation of input angles
input_beam = oss.LDE.InsertNewSurfaceAt(1)
input_beam.Comment = "Input beam"
input_beam.Thickness = 1.0
input_beam.DrawData.DoNotDrawThisSurface = True

cornea_front = oss.LDE.InsertNewSurfaceAt(2)
cornea_front.Comment = "Cornea Front"
cornea_front.Thickness = geometry["cornea_thickness"]
cornea_front.Radius = geometry["cornea_front_curvature"]
cornea_front.Conic = geometry["cornea_front_asphericity"]
zp.solvers.material_model(cornea_front.MaterialCell, refractive_index=refractive_indices["cornea"])

cornea_back = oss.LDE.InsertNewSurfaceAt(3)
cornea_back.Comment = "Cornea Back / Aqueous"
cornea_back.Thickness = geometry["anterior_chamber_depth"]
cornea_back.Radius = geometry["cornea_back_curvature"]
cornea_back.Conic = geometry["cornea_back_asphericity"]
zp.solvers.material_model(cornea_back.MaterialCell, refractive_index=refractive_indices["aqueous"])
cornea_back.DrawData.DoNotDrawEdgesFromThisSurface = True

pupil = oss.LDE.GetSurfaceAt(4)
assert pupil.IsStop, "Pupil must be the STOP surface."
pupil.Comment = "Pupil"
pupil.SemiDiameter = geometry["iris_radius"]
zp.solvers.material_model(pupil.MaterialCell, refractive_index=refractive_indices["aqueous"])
pupil.DrawData.DoNotDrawEdgesFromThisSurface = True

lens_front = oss.LDE.InsertNewSurfaceAt(5)
lens_front.Comment = "Lens Front"
lens_front.Thickness = geometry["lens_thickness"]
lens_front.Radius = geometry["lens_front_curvature"]
lens_front.Conic = geometry["lens_front_asphericity"]
lens_front.SemiDiameter = 4.0  # Larger diameter for visualization purposes
zp.solvers.material_model(lens_front.MaterialCell, refractive_index=refractive_indices["lens"])

lens_back = oss.LDE.InsertNewSurfaceAt(6)
lens_back.Comment = "Lens Back / Vitreous"
lens_back.Thickness = geometry["vitreous_thickness"]
lens_back.Radius = geometry["lens_back_curvature"]
lens_back.Conic = geometry["lens_back_asphericity"]
zp.solvers.material_model(lens_back.MaterialCell, refractive_index=refractive_indices["vitreous"])
lens_back.DrawData.DoNotDrawEdgesFromThisSurface = True

retina = oss.LDE.GetSurfaceAt(7)
assert retina.IsImage, "Retina must be the IMAGE surface."
retina.Comment = "Retina"
retina.Radius = geometry["retina_curvature"]
retina.Conic = geometry["retina_asphericity"]
retina.Thickness = 0
# Set the refractive index of the retina to the vitreous to prevent reflections
zp.solvers.material_model(retina.MaterialCell, refractive_index=refractive_indices["vitreous"])

# Modify the settings for the visualization of the system
for i in range(1, oss.LDE.NumberOfSurfaces + 1):
    oss.LDE.GetSurfaceAt(i).DrawData.DrawEdgesAs = zp.constants.Editors.LDE.SurfaceEdgeDraw.Flat

在Opticstudio中显示眼模

[9]:

_ = zp.analyses.systemviewers.Viewer3D().run(oss)

！[image.png]（附件：image.png）

执行光线追迹#

光线是从光源（相机）到视网膜的，对于在OptiCstudio中配置的不同视场。

结果是根据相机角度和视网膜角度进行评估。后三个参考点比较：第二节点，视网膜中心和瞳孔。

[10]:

ray_trace_results = {}
input_output_angles = []

# Nodal points are calculated in OpticStudio, but can also be calculated analytically
np1, np2 = get_nodal_points(oss)

for i in range(1, oss.SystemData.Fields.NumberOfFields + 1):
    y_angle = oss.SystemData.Fields.GetField(i).Y
    ray_trace_results[y_angle] = zp.analyses.raysandspots.SingleRayTrace(
        px=0, py=0, field=i, global_coordinates=True
    ).run(oss)
    ray_trace_results[y_angle].data.real_ray_trace_data["InputAngle"] = y_angle

    input_output_angles.append(
        InputOutputAngles.from_ray_trace_result(
            ray_trace_results[y_angle],
            y_angle,
            np2=np2,
            np2_navarro=np2,
            retina_center=(
                geometry["lens_thickness"]
                + geometry["vitreous_thickness"]
                - (abs(geometry["retina_curvature"] / (geometry["retina_asphericity"] + 1)))
            ),
            patient="Patient1",
        )
    )

real_ray_trace_results = pd.concat(r.data.real_ray_trace_data for r in ray_trace_results.values())
input_output_angles = pd.DataFrame(input_output_angles)

将视网膜位置添加到数据帧

[11]:

input_output_angles["retina_location"] = input_output_angles.apply(
    lambda r: get_retina_locations(r, real_ray_trace_results), axis=1
)

input_output_angles

[11]:

	input_angle_field	input_angle_cornea	input_angle_pupil	output_angle_pupil	output_angle_np2	output_angle_retina_center	output_angle_navarro_np2	location_np2	location_retina_center	patient	retina_location
0	0.0	0.0	0.000000	0.000000	0.000000	0.000000	0.000000	3.457872	8.299343	Patient1	(20.3985, 0.0)
1	10.0	10.0	8.559338	8.236620	9.924741	13.887107	9.924741	3.457872	8.299343	Patient1	(20.022129705, 2.8982969683)
2	20.0	20.0	17.125957	16.461583	19.876188	27.752562	19.876188	3.457872	8.299343	Patient1	(18.929358005, 5.5933282836)
3	30.0	30.0	25.710515	24.653892	29.866615	41.532014	29.866615	3.457872	8.299343	Patient1	(17.225415858, 7.9060177623)
4	40.0	40.0	34.330320	32.778578	39.883907	55.092636	39.883907	3.457872	8.299343	Patient1	(15.071429925, 9.7049004243)
5	50.0	50.0	43.012066	40.784670	49.883060	68.229900	49.883060	3.457872	8.299343	Patient1	(12.661808084, 10.923468966)
6	60.0	60.0	51.792984	48.602608	59.775819	80.686513	59.775819	3.457872	8.299343	Patient1	(10.196207912, 11.566389056)
7	70.0	70.0	60.718906	56.149161	69.430824	92.200759	69.430824	3.457872	8.299343	Patient1	(7.8495996064, 11.703115207)
8	80.0	80.0	69.838344	63.373162	78.731841	102.612037	78.731841	3.457872	8.299343	Patient1	(5.7383659648, 11.445857555)
9	5.0	5.0	4.279254	4.118911	4.960514	6.944355	4.960514	3.457872	8.299343	Patient1	(20.303833183, 1.4621330149)
10	15.0	15.0	12.841190	12.351573	14.895882	20.825151	14.895882	3.457872	8.299343	Patient1	(19.560230904, 4.2832673229)
11	25.0	25.0	21.415104	20.563653	24.866623	34.659589	24.866623	3.457872	8.299343	Patient1	(18.144798235, 6.8070476922)
12	35.0	35.0	30.014588	28.727470	34.873829	48.350894	34.873829	3.457872	8.299343	Patient1	(16.192992149, 8.8754977161)
13	45.0	45.0	38.661366	36.800334	44.890134	61.729413	44.890134	3.457872	8.299343	Patient1	(13.885875539, 10.388088262)
14	55.0	55.0	47.387416	44.722252	54.850162	74.560403	54.850162	3.457872	8.299343	Patient1	(11.424123782, 11.313897756)
15	65.0	65.0	56.234756	52.414799	64.642057	86.575621	64.642057	3.457872	8.299343	Patient1	(8.9989454527, 11.691614612)
16	75.0	75.0	65.251528	59.800635	74.128488	97.546003	74.128488	3.457872	8.299343	Patient1	(6.7605642505, 11.616108718)
17	85.0	85.0	74.484459	66.881087	83.250187	107.415926	83.250187	3.457872	8.299343	Patient1	(4.7841584997, 11.206051257)

保存输出

[12]:

real_ray_trace_results.to_csv("data/ray_trace_results.csv", index=False)
input_output_angles.to_csv("data/input_output_angles.csv", index=False)

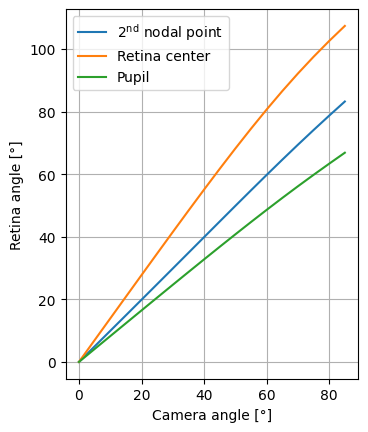

绘制输入角度（相机角）和输出角（视网膜角）之间的关系

[13]:

fig, ax = plt.subplots()

sns.lineplot(
    data=input_output_angles,
    x="input_angle_field",
    y="output_angle_np2",
    label="$2^{\\mathrm{nd}}$ nodal point",
)
sns.lineplot(
    data=input_output_angles,
    x="input_angle_field",
    y="output_angle_retina_center",
    label="Retina center",
)
sns.lineplot(
    data=input_output_angles,
    x="input_angle_field",
    y="output_angle_pupil",
    label="Pupil",
)

ax.set_xlabel("Camera angle [°]")
ax.set_ylabel("Retina angle [°]")
ax.set_aspect("equal")
ax.grid()

../../_images/examples_%E5%9F%BA%E4%BA%8E%E6%82%A3%E8%80%85%E4%B8%AA%E4%BD%93%E7%89%B9%E5%BE%81%E7%9A%84%E7%9C%BC%E5%BA%95%E7%85%A7%E7%89%87%E4%B8%8E%E4%B8%89%E7%BB%B4%E7%9C%BC%E9%83%A8%E5%BD%B1%E5%83%8F%E9%85%8D%E5%87%86%E7%A0%94%E7%A9%B6_1_raytracing_24_0.png
